Selection for UVC 220-280nm Sterilization Modules

Core Principle of UVC Deep UV Sterilization

UVC refers to deep ultraviolet rays with a wavelength ranging from 220 to 280 nm. This band features powerful sterilization capability. It can directly penetrate the cell membranes and nuclei of microorganisms such as bacteria and viruses, damage the molecular structures of their DNA and RNA, and completely inhibit their reproduction and survival to deliver efficient sterilization.

Compared with traditional disinfection methods, UVC ultraviolet sterilization leaves no chemical residues and causes no secondary pollution, with a sterilization efficiency of up to 99.99%. It is safe, eco-friendly and reliable. Thanks to these superior advantages, UVC sterilization modules are widely applied in various household and commercial devices, including water purifiers, water dispensers, pipeline water machines, humidifiers and pet water fountains. They fully meet the demands for daily drinking water treatment, domestic water disinfection and object sanitization.

How to Choose a UVC Sterilization Module

1. Select the Optimal Wavelength Band for Maximum Sterilization Efficiency

The sterilization effect of ultraviolet rays is closely related to wavelength. The 260-280 nm band is recognized as the golden range for sterilization, delivering the best penetration and microbial inactivation performance. If the peak wavelength of a product deviates from this range, its sterilization performance will drop significantly. Therefore, always check the core specifications and ensure the peak wavelength falls within 260-280 nm to guarantee reliable sterilization results.

2. Pay Attention to Optical Power, Stability and Service Life

The output optical power of UVC modules determines the sterilization speed and coverage. Under the same working conditions, higher optical power brings better sterilization efficiency and coverage. Long-term stability and service life are also essential. High-quality UVC sterilization modules for commercial and household use boast a service life of 3,000 to 10,000 hours under normal operating conditions, featuring stable long-term output and low light decay. This helps avoid frequent replacements and performance degradation.

3. Select Modules Based on Application Scenarios and Installation Requirements

Different disinfection scenarios have distinct requirements for modules in terms of waterproof performance, heat dissipation, dimensions and optical design. Please make targeted selections according to actual needs. Key selection tips for mainstream applications are as follows:

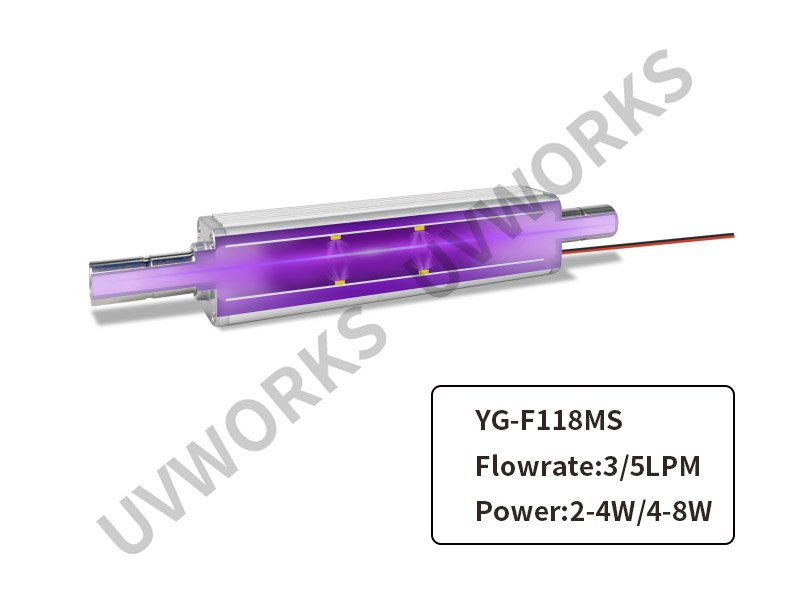

(1) Water Treatment Sterilization

Water disinfection scenarios prioritize waterproof performance and high optical power. Devices exposed to water for extended periods are prone to malfunctions, electric leakage and performance loss if with insufficient waterproof rating.

As a professional player dedicated to UV water disinfection, UVWORKS has an experienced R&D team. Its water treatment sterilization modules reach an IP66 waterproof rating, suitable for in-line, submersible, static water and flowing water disinfection applications. We also provide customized solutions based on device structures, installation positions and disinfection requirements, which are perfectly compatible with water purifiers, sterilizing faucets and terminal water treatment equipment. A high sterilization rate of 99.99% can be maintained consistently.

(2) Air Sterilization

Air disinfection equipment such as air purifiers and fresh air systems need to operate continuously around the clock. Hence, module service life, low light decay and operational stability are the top priorities. In addition, such devices usually have compact internal space, so compact size and excellent heat dissipation design of modules are critical for installation compatibility and long-term stable operation.

(3) Object Surface Sterilization

For sanitizing cups, toothbrushes and other articles, focus on the optical design and irradiation uniformity of modules. The beam angle and light pattern of LED chips directly affect the disinfection coverage. Wide-angle light-emitting modules are the ideal choice in the industry, which can expand the irradiation area effectively, eliminate blind spots and achieve all-round sterilization on object surfaces.

About UVWORKS (Qingdao Yingguang)For premium quality, reliable performance and customized services, choose UVWORKS (Qingdao Yingguang). With years of expertise in the deep UV sterilization industry, our company is backed by a professional R&D team including post-doctoral researchers. We focus on UV sterilization technology research and practical application, and have obtained a number of national invention patents and utility model patents with strong technical strength.

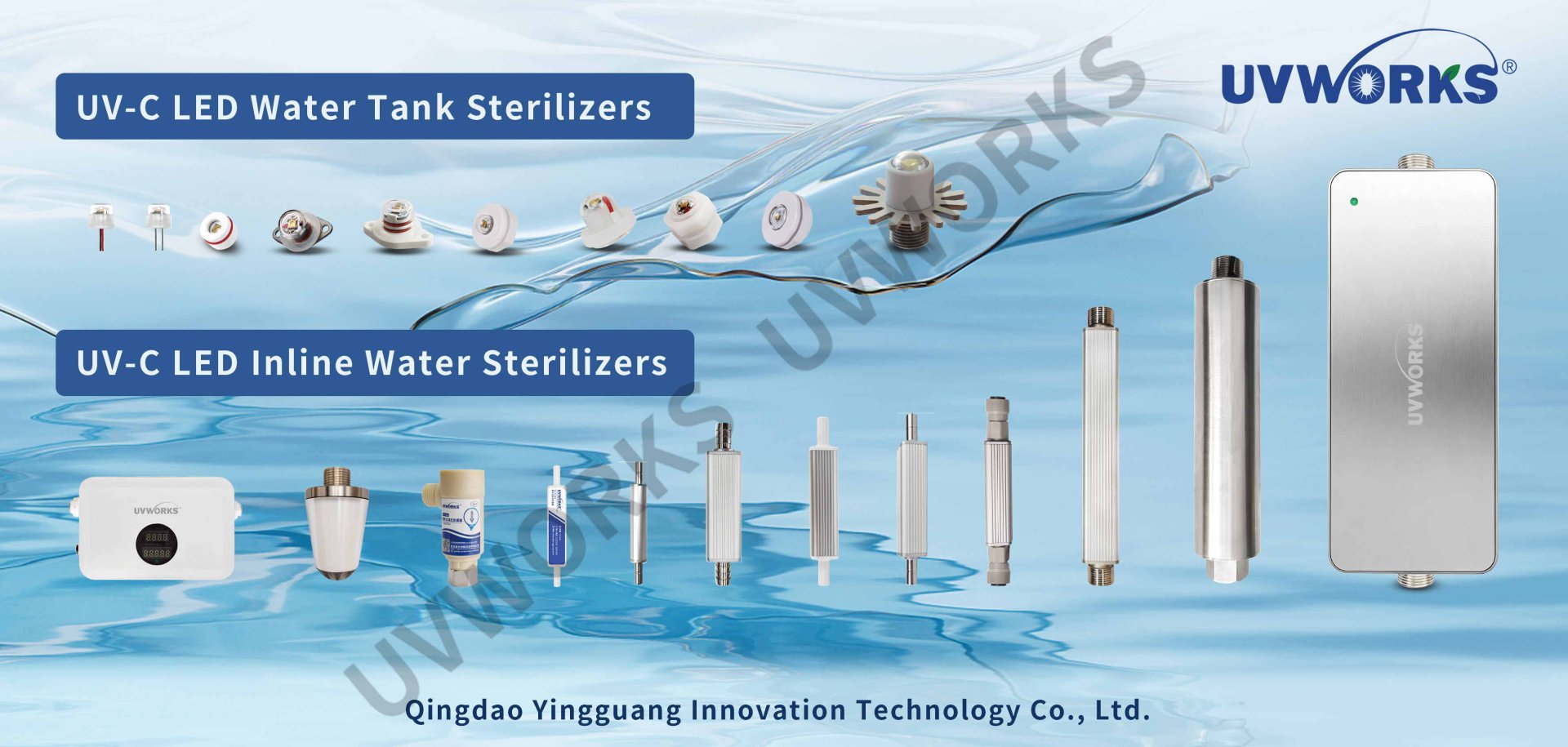

We offer a full range of UVC modules for water sterilization, air sterilization, surface sterilization and medical-grade sterilization. A complete lineup of supporting products is also available, including UV sensors, water quality detection probes and UV monitoring & calibration modules. Our products serve household appliances, commercial equipment, medical facilities, public transportation, industrial testing and many other fields. A large number of mature modules have been launched to the market and proven reliable by extensive application.

For customized disinfection solutions and detailed product specifications, please visit our official website: www.uvworks.com.cn. You may also follow our official WeChat account to get more industry news and product information.
